LSBR-鋁殼電阻
產品規格
 |
 |

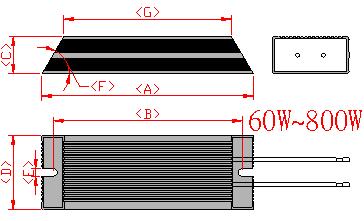

| 定格電力(W) | 尺寸 Dimensisons (mm) | 電阻值範圍(Ω) | 備註 | |||||||
| Power Rating | A±1 | B±2 | C±2 | D±0.1 | E±0.2 | F±1 | G±2 | Resistance Rang | Remark | |
| SMRH- | 60W | 115 | 100 | 20 | 40 | 5.2 | 45° | 75 | 0.1~10K | |
| SMRH- | 80W | 140 | 125 | 20 | 40 | 5.2 | 45° | 100 | 0.1~10K | |
| SMRH- | 100W | 165 | 150 | 20 | 40 | 5.2 | 45° | 125 | 0.1~10K | |
| SMRH- | 120W | 190 | 175 | 20 | 40 | 5.2 | 45° | 150 | 0.15~15K | |
| SMRH- | 150W | 215 | 200 | 20 | 40 | 5.2 | 45° | 175 | 0.15~15K | |
| SMRH- | 200W | 165 | 150 | 30 | 60 | 5.2 | 60° | 130 | 0.3~20K | |
| SMRH- | 300W | 215 | 200 | 30 | 60 | 5.2 | 60° | 180 | 0.5~30K | |
| SMRH- | 400W | 265 | 250 | 30 | 60 | 5.2 | 60° | 230 | 0.5~30K | |
| SMRH- | 500W | 240 | 225 | 40 | 80 | 5.2 | 60° | 195 | 0.5~30K | |
| SMRHL- | 500W | 335 | 320 | 30 | 60 | 5.2 | 60° | 300 | 0.5~30K | |
| SMRH- | 600W | 335 | 320 | 30 | 60 | 5.2 | 60° | 300 | 1~50K | |
| SMRH- | 800W | 400 | 385 | 40 | 80 | 5.2 | 60° | 355 | 1~50K | |
| SMRH- | 1000W | 400 | 380 | 50 | 100 | 5.2 | 60° | 340 | 1~100K | |
| SMRH- | 1500W | 550 | 535 | 50 | 100 | 5.2 | 60° | 490 | 1~150K | |
