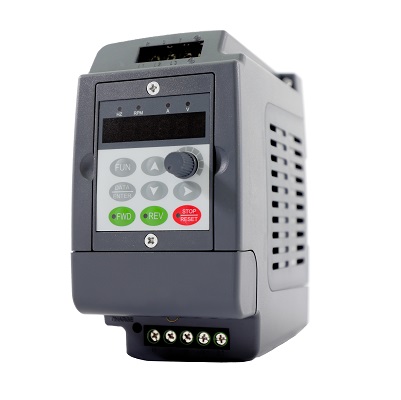

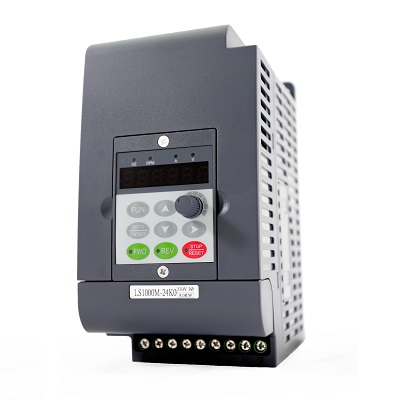

LS1000M Series
Model：LS1000M Compact Drives
Combining compact size, high functionality, and easy slide rail installation, it brings convenience to customers. Supporting various types of motors such as IM, PMSM, BLDC, and SPM, it boasts powerful built-in functions suitable for use in various locations of mechanical equipment.
Add to inquiry
Features
-
LS1000 is compatible with various motors: IM, PM (IPM or SPM), SRM, BLDC, capable of controlling two motors with dual-parameter groups.
-
Accurate parameter auto-tuning, featuring built-in static and dynamic parameter auto-learning functions.
-
Multiple control modes: V/F, V/F+PG, SVC, FOC+PG, TQC+PG.
-
Sensorless torque control, with a minimum speed of 0.1Hz.
-
Suitable for PM servo drive control applications, enabling angle, positioning, speed, and torque control.
SPECIFICATION
200V Series
| LS650M-□□□□-XXX | 20K4 | 20K7 | 21K5 | 22K2 | 24K0 |
| Applicable motor power (KW) | 0.4 | 0.75 | 1.5 | 2.2 | 4.0 |
| Applicable motor power (HP) | 0.5 | 1 | 2 | 3 | 5 |
| Rated output capacity (KVA) | 1.2 | 1.7 | 2.7 | 3.8 | 6.4 |
| Continuous Rated Current (A) | 3.2 | 4.5 | 7.0 | 10 | 17 |
| Input voltage, frequency | 1Ø, 100~120V; 3Ø/1Ø, 200~240V (50/60Hz) | ||||
| Output frequency range (Hz) | 0.00~300.00Hz | ||||
| Overload capacity of Inverter | 150%,60S | ||||
400V Series
| LS650M-□□□□-XXX | 40K7 | 41K5 | 42K2 | 44KO | |
| Applicable motor power (KW) | 0.75 | 1.5 | 12.2 | 4.0 | |
| Applicable motor power (HP) | 1 | 2 | 3 | 5 | |
| Rated output capacity (KVA) | 2.4 | 3.4 | 5.3 | 6.8 | |
| Continuous Rated Current (A) | 3.2 | 4.5 | 7.0 | 9.0 | |
| Input voltage, frequency | 3Ø, 380~460V (50/60Hz) | ||||
| Output frequency range (Hz) | 0.00~300.00Hz | ||||
| Overload capacity of Inverter | 150%,60S | ||||
