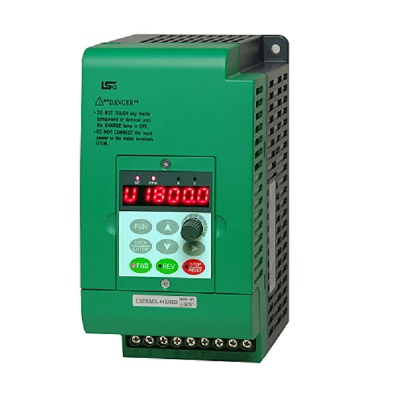

LS650M Series Inverter
Model：LS650M Compact Drives
With a compact and lightweight design, it significantly saves installation space. Specifically developed for single/three-phase power applications in mechanical equipment, It is suitable for various applications in pumps, food machinery, wind turbines, conveyors, and other processing machinery.
Download
Add to inquiry
Features
1. CT Series unique overload capacity：150%/60s
2. VT Series unique overload capacity：120%/60s
3. High reliability and low energy loss (New generation IGBT Module)
4. Output Frequency：0.01Hz~300.00Hz,Built-in AVR Function
5. Multi-function PID setting,PID for pump only
6. Built-in intelligent multi-function pump only parameters
7. Built-in series communication interface RS-485 (Baud rate to 34800)
8. Digital monitoring software
9. Setting of S-curve,linear curve and V/F curve
10. 8 sets of acceleration/deceleration selections with slip compensation
11. 16-step speed presetting and 16-step programmable automation and PLC programming
SPECIFICATION
200V Series
| LS650M-□□□□-XXX | 20K4 | 20K7 | 21K5 | 22K2 | 24K0 |
| Applicable motor power (KW) | 0.4 | 0.75 | 1.5 | 2.2 | 4.0 |
| Applicable motor power (HP) | 0.5 | 1 | 2 | 3 | 5 |
| Rated output capacity (KVA) | 1.2 | 1.7 | 2.7 | 3.8 | 6.4 |
| Continuous Rated Current (A) | 3.2 | 4.5 | 7.0 | 10 | 17 |
| Input voltage, frequency | 1Ø, 100~120V; 3Ø/1Ø, 200~240V (50/60Hz) | ||||
| Output frequency range (Hz) | 0.00~300.00Hz | ||||
| Overload capacity of Inverter | CT：150%,60S / VT：120%,60S | ||||
400V Series
| LS650M-□□□□-XXX | 40K7 | 41K5 | 42K2 | 44KO | |
| Applicable motor power (KW) | 0.75 | 1.5 | 12.2 | 4.0 | |
| Applicable motor power (HP) | 1 | 2 | 3 | 5 | |
| Rated output capacity (KVA) | 2.4 | 3.4 | 5.3 | 6.8 | |
| Continuous Rated Current (A) | 3.2 | 4.5 | 7.0 | 9.0 | |
| Input voltage, frequency | 3Ø, 380~460V (50/60Hz) | ||||
| Output frequency range (Hz) | 0.00~300.00Hz | ||||
| Overload capacity of Inverter | CT：150%,60S / VT：120%,60S | ||||
