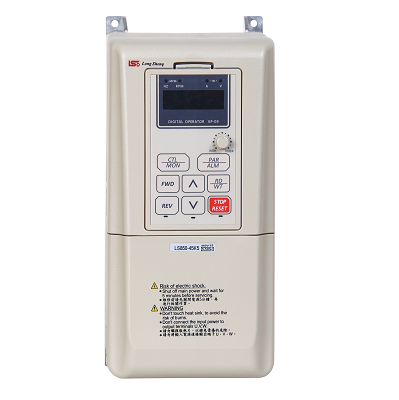

LS850 Series Inverter
Model：LS850-Highest speed frequency Inverter
Developed specifically for cutting equipment to match high-speed spindle motors, a high-frequency inverter has been developed, capable of reaching up to 4333Hz, enabling speeds of up to 250,000 rotations per minute.
Add to inquiry
Introductiom
SSSPWM full name is Symmetically Synchronized Sine PWM，the meaning reference as below： “Carrier Synchronous、Full symmetrysinwavePWM Modulate。You can see from the figure below (left), by LS unique wave algorithms, between the inverter output phase voltage and line voltage has physically【Symmetrical】、【Point symmetry】Special effects; the purpose is to completely eliminate the low order frequency (sub) harmonics and reduce the high octave (super) harmonic components

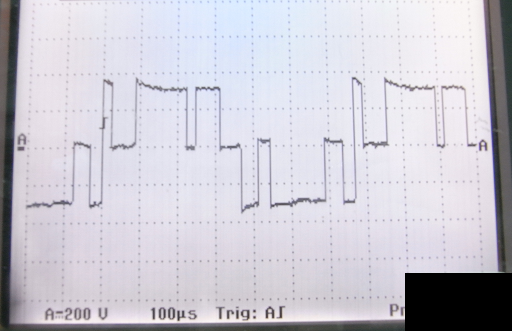

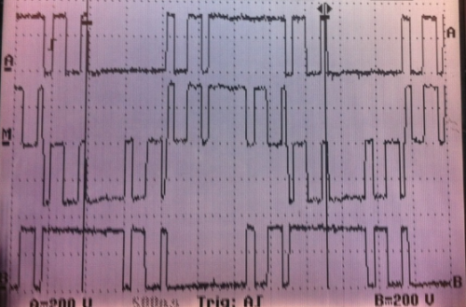

Measured wave symmetry analysis chart
| LS Inverter | Other Inverter |
 |
 |

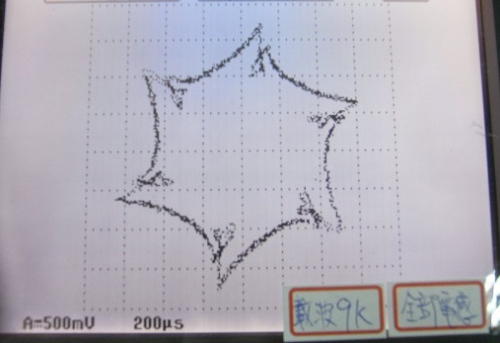

Current flux measured wave symmetry analysis chart
| LS Inverter | Other Inverter |
 |
 |
Application
1. PCB drilling machine
2. CNC Machine Tool
3. High speed drill grinding machine
