LS AC Input Reactor

LS AC Input Reactor

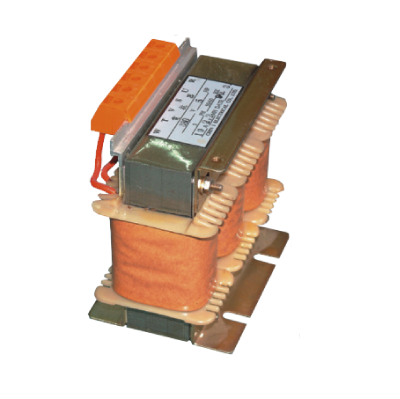

Model：LS AC Input Reactor

voltage Range:
200V~260V1p/3P
380V~460V3p
Capacity Range:
0.4KW~400KW

Add to inquiry

220V Series

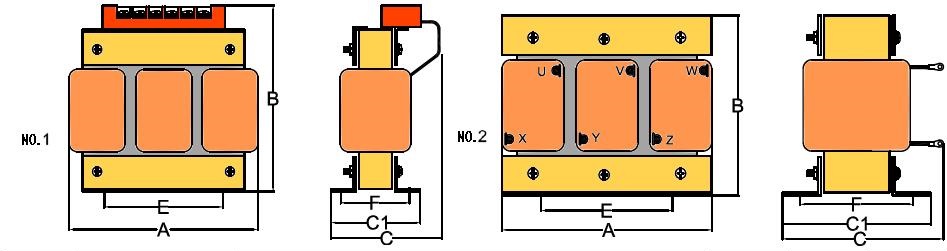

Item	Capacity range		Demensions						Figure	Fixed hole	Weight
Item	KW	HP	A	B	C	C1	E	F	Figure	mm	Kg
1	0.4	0.5	155	152	95	75	60	55	1	6.0	2.5
2	0.75	1	155	152	95	75	60	55	1	6.0	2.5
3	1.5	2	155	152	95	75	60	55	1	6.0	2.7
4	2.2	3	155	152	95	75	60	55	1	6.0	2.8
5	3.7	2	155	152	95	75	60	55	1	6.0	3.2
6	5.5	7.5	155	120	125	75	60	60	2	6.0	3.3
7	7.5	10	155	120	125	75	60	60	2	6.0	3.5
8	11	15	180	140	140	100	90	75	2	6.0	6
9	15	20	180	140	140	100	90	75	2	6.0	6
10	18.5	25	180	140	140	100	90	75	2	6.0	6
11	22	30	180	140	150	110	90	85	2	6.0	8
12	30	40	180	140	150	110	90	85	2	6.0	9
13	37	50	180	140	170	120	90	90	2	6.0	11
14	45	60	230	178	170	120	160	100	2	10	14
15	55	75	230	178	175	125	160	105	2	10	16
16	75	100	230	178	170	120	160	115	2	10	22
17	90	120	280	195	205	150	160	115	2	10	26
18	110	150	280	195	205	150	160	115	2	10	28

380V Series

Item	Capacity range		Demensions						Figure	Fixed hole	Weight
Item	KW	HP	A	B	C	C1	E	F	Figure	mm	Kg
1	0.4	0.5	155	152	95	75	60	55	1	6	2.5
2	0.75	1	155	152	95	75	60	55	1	6	2.5
3	1.5	2	155	152	95	75	60	55	1	6	2.7
4	2.2	3	155	152	95	75	60	55	1	6	2.8
5	3.7	2	155	152	95	75	60	55	1	6	3.2
6	5.5	7.5	155	120	125	75	60	60	2	6	3.3
7	7.5	10	155	120	125	75	60	60	2	6	3.5
8	11	15	180	140	140	100	90	75	2	6	6
9	15	20	180	140	140	100	90	75	2	6	6
10	18.5	25	180	140	140	100	90	75	2	6	6
11	22	30	180	140	150	110	90	85	2	6	8
12	30	40	180	140	150	110	90	85	2	6	9
13	37	50	180	140	170	120	90	90	2	6	11
14	45	60	230	178	170	120	160	100	2	10	14
15	55	75	230	178	175	125	160	105	2	10	15
16	75	100	230	178	170	120	160	115	2	10	22
17	90	120	280	195	205	150	160	115	2	10	26
18	110	150	280	195	205	150	160	115	2	10	28
19	132	175	280	195	225	170	160	135	2	10	34
20	160	200	280	195	225	170	160	135	2	10	35
21	200	250	320	215	230	170	170	135	2	10	38
22	220	300	320	225	240	190	170	155	2	10	53
23	280	350	380	245	250	190	220	155	2	10	65
24	315	400	380	265	250	190	220	155	2	10	70
25	355	500	380	265	250	190	220	155	2	10	73
