LS AC Ouput Reactor

LS AC Ouput Reactor

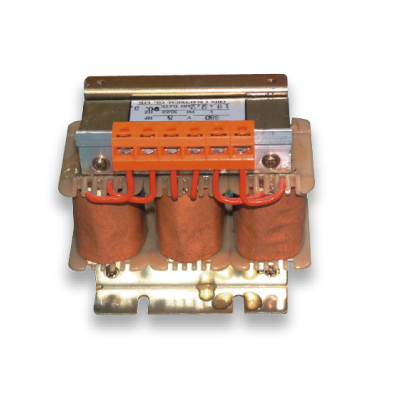

Model：LS AC Ouput Reactor
voltage Range:
200V~260V/3P
380V~460V/3p
Capacity Range:
0.4KW~400KW
Add to inquiry
220V Series

Item Capacity range Demensions

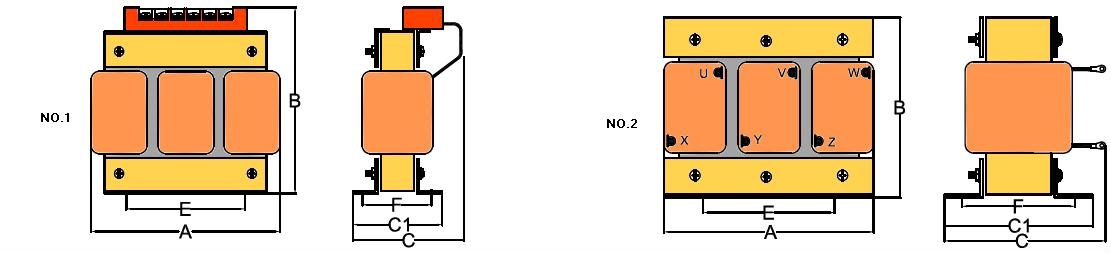

Figure

 Fixed hole Weight
KW HP A B C C1 E F mm Kg
1 0.4 0.5 155 152 105 75 60 60 1 6.0 2.8
2 0.75 1 155 152 105 75 60 60 1 6.0 3
3 1.5 2 155 152 115 90 60 65 1 6.0 4
4 2.2 3 180 175 120 100 90 65 1 6.0 7
5 3.7 2 180 175 120 100 90 65 1 6.0 7
6 5.5 7.5 180 140 150 110 90 75 2 6.0 8.5
7 7.5 10 180 140 160 120 90 85 2 6.0 10
8 11 15 180 178 165 115 160 90 2 10 15
9 15 20 230 178 175 125 160 100 2 10 17
10 18.5 25 230 178 190 140 160 115 2 10 20
11 22 30 230 178 190 140 160 115 2 10 21
12 30 40 230 178 165 115 160 90 2 10 15
13 37 50 230 178 185 135 160 110 2 10 19
14 45 60 230 178 185 135 160 110 2 10 20
15 55 75 230 178 195 145 160 120 2 10 23
16 75 100 280 205 215 155 160 120 2 10 30
17 90 120 280 205 215 155 160 120 2 10 31
18 110 150 320 215 245 180 170 145 2 10 43
380V Series

Item Capacity range Demensions Figure

Fixed hole

 Weight
KW HP A B C C1 E F mm Kg
1 0.4 0.5 155 152 105 75 60 60 1 6 2.8
2 0.75 1 155 152 105 75 60 60 1 6 3
3 1.5 2 155 152 115 90 60 65 1 6 4
4 2.2 3 180 175 120 100 90 65 1 6 7
5 3.7 2 180 175 120 100 90 65 1 6 7
6 5.5 7.5 180 175 150 110 90 75 1 6 8.5
7 7.5 10 180 175 160 120 90 85 1 6 10
8 11 15 230 178 165 115 160 90 2 10 15
9 15 20 230 178 175 125 160 100 2 10 17
10 18.5 25 230 178 190 140 160 115 2 10 20
11 22 30 230 178 190 140 160 115 2 10 21
12 30 40 230 178 165 115 160 90 2 10 15
13 37 50 230 178 180 130 160 105 2 10 19
14 45 60 230 178 180 130 160 105 2 10 20
15 55 75 230 178 190 135 160 115 2 10 23
16 75 100 280 205 215 155 160 120 2 10 30
17 90 120 280 205 225 165 160 130 2 10 34
18 110 150 320 215 245 180 170 145 2 10 44
19 132 175 320 235 245 180 170 145 2 10 47
20 160 200 320 235 245 180 170 145 2 10 49
21 200 250 320 245 255 190 170 160 2 10 57
22 220 300 320 255 265 190 170 160 2 10 62
23 280 350 380 275 265 190 220 160 2 10 77
24 315 400 380 330 265 190 220 160 2 10 86
25 355 500 380 330 265 190 220 160 2 10 91
